Khoom Qhia:

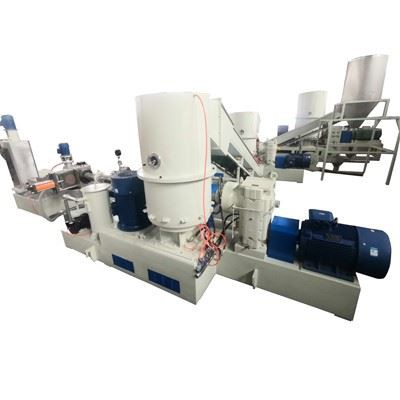

1.Pkawg zaj duab xis granule ub tshuab nrog compactor tshuab,Peb hauv ib qho, lub tshuab compactor no suav nrog shredding, txuas ntxiv thiab pelletizing muaj nuj nqi. Nrog siab ua haujlwm, tso zis siab.
2.Qhov compactor nrog qhov kub thiab txias, ua rau plastics me me pelletizing, thiab nws kuj muaj cutter muaj nuj nqi, tib lub sijhawm ua haujlwm evaporating dej.
3.Single ntsia hlau extruder tuaj yeem nruab nrog kev tso pa lossis tsis tso pa tawm, txoj kev pelletizing (hom dej nplhaib, dej sawv hom), vijtsam hloov hloov tuaj yeem xaiv ntau homthiab lwm yam, raws li cov yam ntxwv ntawm cov yas.
4.Drivetrain: Cov qhov cub muaj qhov siab ceev lub zog. Tsawg suab nrov thiab ua haujlwm ruaj khov.
5. Kho cov ntsia hlau thiab cov tsim cov kav hlau: Cov ntsia hlau tau tsim tshwj xeeb rau cov khoom siv rov ua dua tshiab raws lawv cov yam ntxwv. Tus qauv tshwj xeeb ua kom muaj kev sib tsoo tag nrho hauv kev ua haujlwm.
Cov yas ntim yas txo cov khoom ntim qub ntawm cov yas nce mus txog 90%. Thiab ib qho duab lossis cim xeeb ntawm cov yas puas tau rhuav tshem, yog li cov tshuab yog qhov zoo tagnrho rau kev rov qab ua cov yas zaj duab xis woven hnab.Hauv nws yog cov yeeb yaj kiab tawg, zaj duab xis lossis cov yob zaj duab xis tag nrho, cov tshuab ua tshuab tau yooj yim pelletized thiab tom qab ntawd nkag ib leeg-ntsia hlau extruder rau pelletize, nce tsim.
Cov Khoom Siv Luam Khoom Rov Qab
| Cov khoom siv | PE, HDPE, LDPE, LLDPE, PP, CPP, BOPP, EPS, thiab lwm yam. |
| Puab | Zaj duab xis, Hnab, Woven hnab, Raffia, Npuas zaj duab xis, Ua npuas ncauj, nonwoven npuag, Filament, ntawv ci, nti |
| Hom | Xoob, khi, yob, seem |
| Keeb Kwm | Kev Raug Txom Nyem, Khw zaj duab xis, Hauv tsev pov tseg, Regrind |
Cov Lus Qhia Tshwj Xeeb
| Qauv | ML85 | ML100 | ML130 | ML160 | ML180 | |
| Tsim Tawm | PP | 120KG | 250KG | 400KG | 600KG | 800KG |
| HDPE | 150KG | 300KG | 500KG | 700KG | 1000KG | |
| LDPE | 180KG | 400KG | 600KG | 800KG | 1200KG | |
| Lub cev hnyav | 4000KG | 6000KG | 8000KG | 12000KG | 15000KG | |
| Tag nrho cov hwj huam | 140KW | 215KW | 325KW | 420KW | 590KW | |
| Compactor / agglomerator | Compactor txoj kab uas hla | φ800mm | φ1000mm | φ1200mm | φ1300mm | φ1500mm |
| Hniav (teb / ruaj khov) | 6/5 | 6/12 | 9/12 | 9/13 | 12/15 | |
| Lub cev muaj zog | 37KW | 55KW | 90KW | 110KW | 160KW | |
| Extruder | Hom | Qhov chaw degassing yog tsim los ntawm cov khoom ntiag tug ntawm cov khoom sib txawv | ||||
| Ntsia taub | φ85mm | 100mm | φ130mm | φ160mm | φ180mm | |
| L/D | 33/1 | 33/1 | 33/1 | 30/1 | 30/1 | |
| Ntsia thawv qeeb mentshis (RPM) | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | |
| Chim chim cua sov | 24KW | 35KW | 54KW | 75KW | 120KW | |
| Barrel cua txias txoj kev | BY CUA | BY CUA | BY CUA | BY CUA | BY CUA | |
| Qhov kub thiab txias tswj cheeb tsam | 0.3KWx4 | 0.3KWx5 | 0.5KWx5 | 0.5KWx5 | 0.5KWx6 | |
| Lub cev muaj zog | 55KW | 90KW | 132KW | 185KW | 250KW | |
| Ntsuam Xyuas Kev Hloov | Hom | Ob / ib txoj hauj lwm phaj hydraulic screen hloov pauv (yam tsis txwv lub tshuab thiab yuav tsis cuam tshuam qhov kawg tsim tawm) | Ob chav kem hydraulic screen txauv | |||
| Cov cua kub | 7KW | 10KW | 16KW | 20KW | 30KW | |
| Qhov kub thiab txias tswj cheeb tsam | 1 | 1 | 1 | 1 | 1 | |
| Roj twj tso kua mis | 1.5KW | 2.2KW | 3KW | 3KW | 3KW | |
Tuag& Tej Qhov System | Tuag hom | Hloov puab tuag phaj | ||||
| Cua sov fais fab tuag | 5KW | 6KW | 10KW | 10KW | 10KW | |
| Txiav qauv | Tuag lub ntsej muag txiav system | |||||
| Txiav lub cev muaj zog | 1.5KW | 1.5KW | 2.2KW | 2.2KW | 2.2KW | |
| Qhov kub thiab txias tswj cheeb tsam | 1 | 1 | 1 | 1 | 1 | |
| Lub taub dej | 2.2KW | 3KW | 4KW | 4KW | 4KW | |
| Lub Hwj Huam Ntawm Centrifugal Ziab | 2.2KW | 3KW | 4KW | 5.5KW | 7.5KW |
Hloov Tes Taw Hloov Hydraulic:
 |  |
Pelletizing txiav:
 |  |
Qhov Kawg Khoom:
 |  |
