Khoom Qhia:
PP, PE, ABS, HIPS zaj duab xis, hnab, xov paj, ntawv, lub raj mis, pluaj, thiab lwm yam kev txhaj tshuaj, kev rho tawm sab nraud pov tseg. Thiab HDPE, LDPE, LLDPE, PS, PC, PMMA, TPU, EVA thiab lwm cov khoom siv yas pov tseg.
3. Tib qho ntsia hlau yas Granulator tshuab PE PP Zaj Duab Xis ua dua tshiab yog tsuas yog rau cov khib nyiab uas rov ua dua tshiab, nrog qhov zoo ntawm kev lag luam zoo thiab muaj peev xwm, qis noj thiab lwm yam.
Lub tshuab no tsim nyog rau kev tsim rov qab thiab granulation ntawm cov yas khib nyiab, raws li HDPE, LDPE, thiab PP, thiab lwm yam. Thiab tuaj yeem siv rau ob qho khoom siv zaj duab xis thiab flakes mateiral.
Siv: Chav tsev no haum rau PE, EVA, PVC thiab lwm zaj duab xis pov tseg thiab PE, PVC, ABS, PP thiab lwm yam khoom siv pulverized zoo li PE, PP hmoov hmoov xaiv cov khoom, cov kws ua lag luam nyob ib ncig ntawm cov ces kaum, rov ua dua qub zaj duab xis mulch, los zaj duab xis nylon zaj duab xis thiab cov ntaub ntawv pov tseg xws li hnab ntim cov hnab yog siv los ua cov ntaub ntawv khoom siv. Cov granules tsim tau dav siv.
Lub tshuab granule lub ntsiab tshuab:
| Yam TSIS tau. | Yam lub npe | Kom muaj nuj nqis | Lub Zog |
| 1 | Siv tawv conveyor | 1set | 2.2kW |
| 2 | Φ100 / 28single ntsia hlau extruder | 1set | 132kW |
| 3 | Compactorr | 1 teeb | 90kW |
| 4 | Hydraulic npo hloov tshuab | 1 teeb | 2.2kW |
| 5 | 100/10 tib qho ntsia hlau txuas | 1 teeb | 55kW |
| 6 | Hydraulic npo hloov tshuab | 1 teeb | 2.2kW |
| 7 | Dej-ntiv nplhaib tuag lub ntsej muag txiav kev kaw lus | 1 teeb | 2.2kW |
| 8 | dej qhov | 1 teeb | --- |
| 9 | Centrifugal tshuab ziab khaub ncaws | 1set | 7.5kW |
| 10 | Kev Co | 1set | 2 * 0.22kW |
| 11 | Cua kis tau tus mob | 1 teeb | 4kW |
| 12 | CiaSilo | 1 teeb | --- |
| 13 | Lub thawv tswj hluav taws xob | 1 teeb | --- |

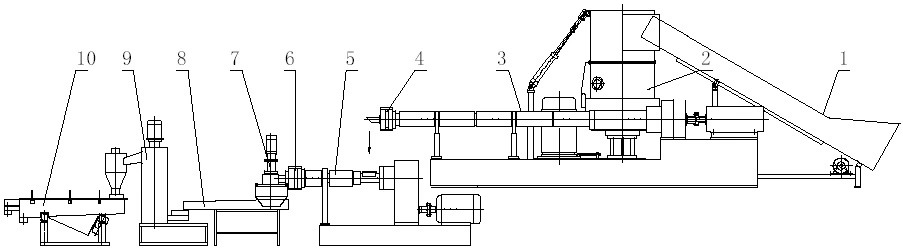

Cov Tshuab Layout:
1.Siv tawv conveyor
2.Kev Lom Zem
3.Single ntsia hlau extruder tshuab
4.Hydraulic tshuab tso pa tawm
5.Single ntsia hlau extruder tshuab
6.Hhiav npo tso pa tawm
7.Vertical Dej-ntiv nplhaibtuag lub ntsej muag txiav system
8.Dej qhov
9.Centrifugal tshuab ziab khaub ncaws
10.Kev Co
Parameter Daim Ntawv Qhia Tseem Ceeb Daim Ntawv:
Qauv | Ntsia cov taub (hli) | L/D | Peev Xwm (kg / h) | Lub cev muaj zog loj (kw) | compactor zog (kw) | Kab ntev (m) |
PP / PE-85 | 85 | 25-33 | 200-250 | 75 | 55 | 10 |
PP / PE-100 | 100 | 25-33 | 250-300 | 90 | 55 | 12 |
PP / PE-120 | 120 | 25-33 | 350-400 | 110 | 90 | 15 |
PP / PE-130 | 140 | 25-33 | 400-500 | 132 | 110 | 18 |
PP / PE-160 | 160 | 25-33 | 600-800 | 160 | 110 | 20 |
PP / PE-180 | 180 | 25-33 | 600-800 | 250 | 132 | 26 |

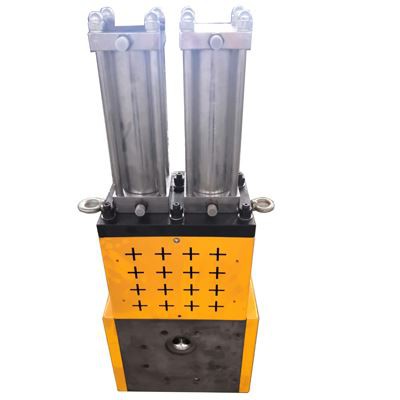

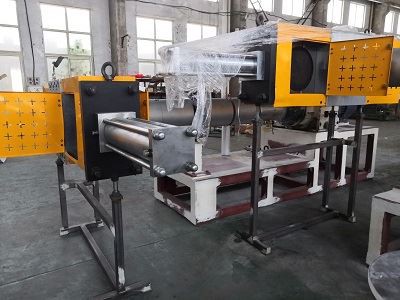

Hom Hydraulic Hloov Pauv Hloov:
 |  |
 |  |

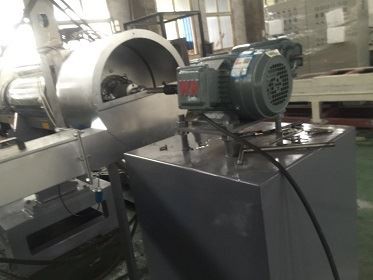

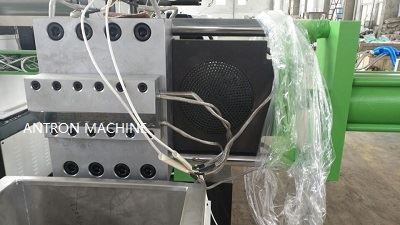

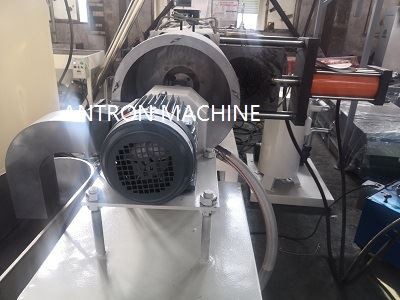

Hom pelletizer:
 |  |
 |  |
Qhov Kawg Khoom:
 |  |
Peb Cov Kev Pab:
1. Peb yuav muab tag nrho cov cav tov rau qhov ua tiav raws li cov neeg siv khoom' s yuav tsum tau ua.
2. Peb yuav muab kev pabcuam ua tiav rau kev teeb tsa Hoobkas thiab lwm yam ntaub ntawv los pab cov qhua tuaj yeem tsim lub Hoobkas.
3. Peb yuav muab cov kev pabcuam zoo rau lub tshuab nruab thiab kev cob qhia, kom txog thaum cov neeg tuaj yeem tuaj yeem khiav cov tshuab thiab ua ntau lawm.
4. Tsuas yog lav ib xyoos zoo lav, peb yuav muab kev pab cuam tom qab muag rau tag nrho lub neej.
5. Rau kev koom tes mus sij hawm ntev, peb ib txwm muab cov khoom zoo, nqe zoo thiab kev pabcuam zoo rau cov qhua tuaj noj mov.
Cim npe nrov: Tib Ntsia Hlau Yas Granulator Tshuab PE PP Zaj Duab Xis Rov Ua Dua, cov chaw muag khoom, chaw tsim khoom, Hoobkas, ua nyob rau hauv Suav teb
